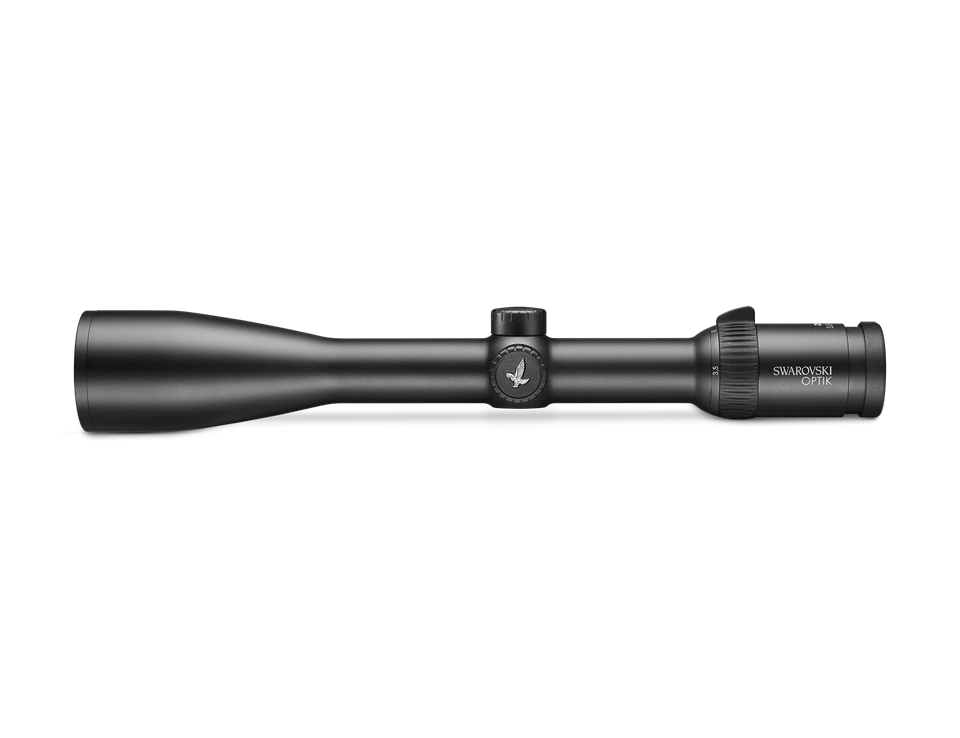

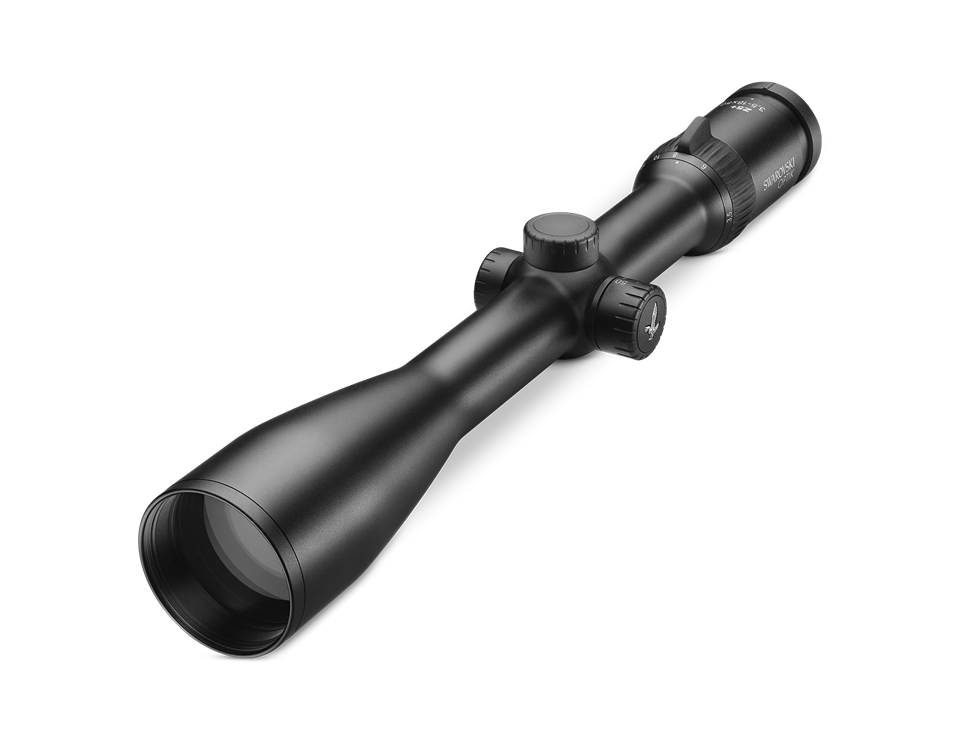

The Z5+ 3.5-18x50 P model is designed for hunters who need versatility, long-range capabilities, and enhanced visibility in various hunting conditions. This scope excels in diverse environments, from dense forests to open plains. With a 30mm main tube diameter, it provides increased adjustment range for precise targeting.
Objective |
|
magnification |
3.5-18 |
Effective objective lens diameter |
34.3-50 mm |
Exit pupil diameter |
9.5-2.8 mm |
Exit pupil distance |
95 mm |
Field of view |
10.1-2.1 m/100m |
Field of view degrees |
5.8-1.2° |
Field of view apparent |
21° |
Diopter adjustment |
-3 to +2 dpt |
Light transmission |
91% |
Twilight factor acc. to ISO 14132-1 |
9.9-30.0 |
Parallax correction |
50-∞ m |
|
|
Measurement |
|
Impact point correction per click (in / mm) |
1/4 MOA/100yds - 7.27mm/100m |
Max. elevation / windage adjustment range (m/100m / in/100yds) |
2.3/2.3/100m - 80 MOA/80MOA/100yds |
|
|
Size & weight |
|
Length in mm. |
366 mm |
Weight |
524 g |
Central tube diameter |
30 mm |
|
|
Environment & Conditions |
|
Functional temperature |
-20 to +55 °C |
Storage temperature |
-30 to +70 °C |
Submersion tightness |
13 ft / 4 m water depth (inert gas filling) |
