When it comes to rangefinding binoculars the choice is clear. The BX-6 Range HD is the ultimate fusion of technology and glass that will forever change the way you spot, range, and deliver.
At its core is our highest-performing optical system to date, delivering exceptional brightness, sharpness, true-to-life color, and edge-to-edge clarity that professional hunters, outfitters, and long-range shooters depend on. Equipped with fast and powerful laser rangefinding technology, the BX-6 Range HD allows you to confidently and quickly range animals out to 2,000 yards, trees to 3,000 yards, and reflective targets out to 6,000 yards using long-range mode.
All critical data is delivered through the vivid-red AccuView™ AMOLED display—a daylight-bright, fully customizable display designed for instant readability in any condition while preserving optical clarity. Combined with an intuitive, glove-friendly keypad, the BX-6 Range HD operates like a high-tech field command center, fast, clear, and distraction-free.
Advanced ballistic intelligence is seamlessly integrated right into the unit. Powered by Hornady 4DOF™ ballistics for rifle shooters and Precision Cut Archery® software for bowhunters, the BX-6 Range HD calculates precise solutions using your weapon data and real-time environmental inputs from onboard sensors. Wind and elevation data can also be incorporated via the Leupold Control App, delivering confident solutions across disciplines and distances.
Leupold’s Precision pinning technology completes the system. Range a location and drop a GPS pin directly into your preferred mapping app to mark targets, downed animals, property lines, and more. With 2-degree pinning accuracy—achieved through proprietary calibration—every pin drops precisely where you ranged it.
Outfitted with a tripod mount, interchangeable Form-Fit eyecups, and extreme-climate durability, the BX-6 Range HD replaces multiple devices with one purpose-built optic—delivering total situational awareness in a single system.
From first glass to final decision, the BX-6 Range HD is clearly superior.
-

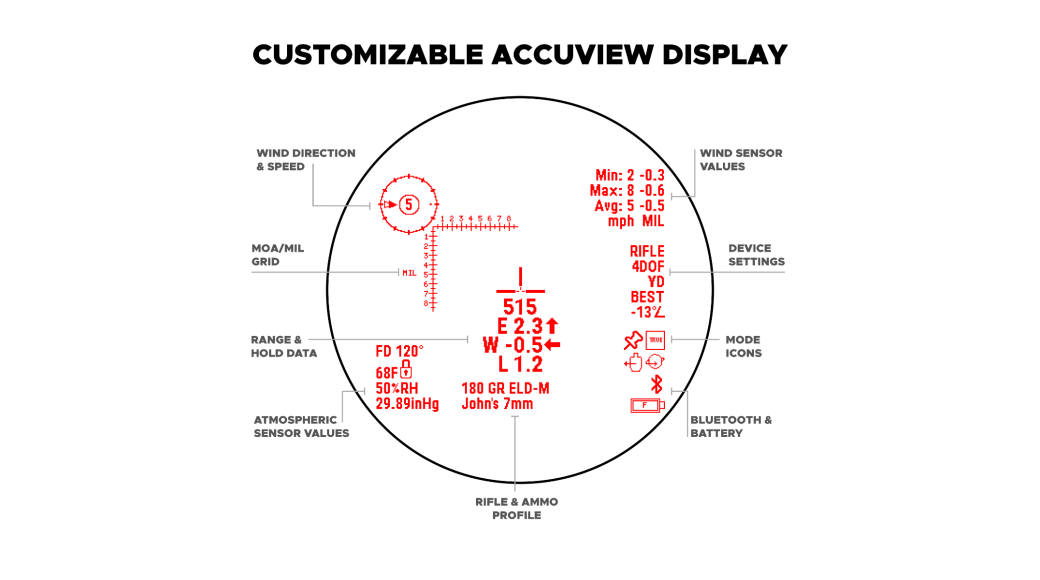

AccuView™ Display
- A customizable, vivid-red, daylight-bright AMOLED display that’s easy to read in all conditions and preserves world-class optical clarity.
-
Hornady® 4DOF™ Ballistic Calculator
- Calculates your bullet’s true flight path using real bullet data, delivering one of the most accurate and dependable trajectory solutions available.
-
Precision Cut Archery® Software
- Uses arrow weight, velocity, peep height, and atmospheric data for highly accurate bow ballistics.
-
Onboard Environmental Sensors
- Real-time environmental inputs from onboard sensors deliver accurate readings.
-
Precision Pinning
- Our proprietary Precision GPS Pinning delivers accuracy within 2 degrees when dropping exact GPS waypoints into your preferred mapping app to mark targets, shot locations, or glassing points. Powered by the Leupold Control App, pinning currently integrates with onX Hunt, Deercast, HuntStand, Google Maps, and Apple Maps.
-
Control App Compatible
- Connect to the Leupold Control App via Bluetooth to drop waypoints, adjust settings, or remotely control your rangefinder.
-
Interchangeable Form-Fit Eyecups
- Our Form-Fit eyecups come in three different sizes, allowing you to customize your viewing experience based on your preferences. Choose the winged eyecups for blocking out stray light, opt for the medium eyecups for all-around comfort, or select the low eyecups designed specifically for use with glasses.
-
Waterproof and Fogproof
- Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures and elevation changes, so the internals of the optics stay moisture free and crystal clear for life.
Specifications |
|
|
|
Archer's Advantage |
No |
Battery Type |
CR123 |
Display Type |
AMOLED |
Flightpath |
No |
Last Target |
Yes |
Line of Sight (LOS) |
Yes |
Magnification |
10 |
Prism Lock |
No |
Trophy Scale |
No |
Tripod Compatible (1/4-20) |
No |
True Ballistic Range - Wind (TBR-W) |
Yes |
True Ballistic Range (TBR) Mode |
No |
Horizontal Distance (TRIG-H) |
No |
Archer's Advantage |
No |
Bow Mode |
Yes |
True Golf Range (TGR) |
No |
Length (in) |
6.8 |
Width (in) |
5.3 |
Height (in) |
2.6 |
Weight (oz) |
41 |
Objective Diameter (mm) |
42 |
Linear FOV (ft@1000 yd) |
330 |
Angular FOV (Degrees) |
6.3 |
Eye Relief (mm) |
18 |
Min Diopter (dpt) |
-5 |
Max Diopter (dpt) |
5 |
Battery Life (Actuations) |
4000 |
Accuracy to 125 (yd) |
0.5 |
Accuracy to 1000 (yd) |
2 |
Accuracy above 1000 (yd) % |
0.5 |
Max Range - Deer (yd) |
2000 |
Max Range - Trees (yd) |
3000 |
Max Range - Reflective (yd) |
6000 |
Min Range (yd) |
5 |
Laser Classification |
Class 3R |
