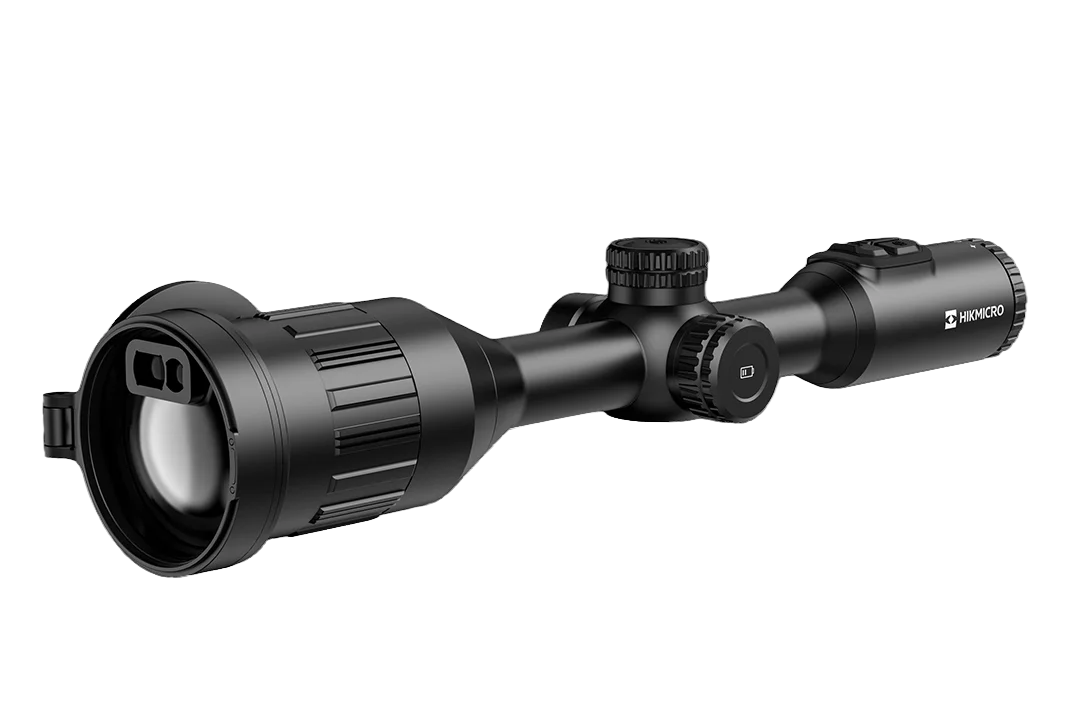

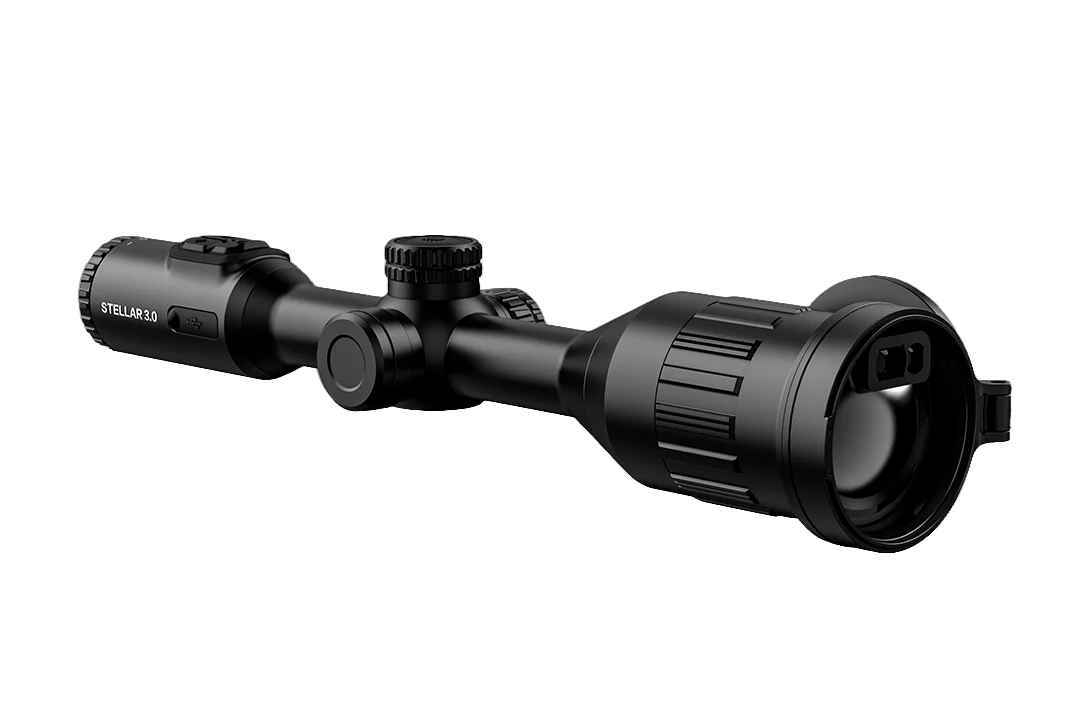

The HIKMICRO STELLAR SX60L 3.0 Thermal Scope delivers unparalleled precision, clarity, and innovation for professional hunters. With its cutting-edge 1280 x 1024 thermal detector @12μm and NETD < 18mK, this scope captures the finest details in any weather, ensuring accurate target identification, even in rain, fog, or total darkness. The 60mm F1.0 lens offers a detection range of up to 3100 meters, providing outstanding visibility at long distances.
Equipped with a 2560 x 2560 AMOLED display, the SX60L 3.0 allows hunters to spot targets quickly and eliminate eye fatigue during extended use. This large display delivers a cinema-quality viewing experience, making it easier to see impact points and improve accuracy.
The built-in 1000m laser rangefinder with advanced ballistic calculation ensures precise long-range shots, providing accurate distance measurement and inclination angle compensation. Whether you’re hunting in the field or forest, the SX60L 3.0 offers high shock resistance (up to 1000g/0.4ms) to handle the most powerful calibers.
The innovative HSIS (HIKMICRO Shutterless Image System) and Image Pro 2.0 algorithm enhance image quality by reducing noise and providing more layered, detailed visuals, ensuring you never miss a critical moment. With 1.3 cm @ 100m clicks, hunters can zero their scope with fine-tuned precision.
Built for durability and endurance, the SX60L 3.0 boasts up to 10 hours of continuous operation, powered by internal and external rechargeable batteries. Its ergonomic design includes a soft eyepiece, magnetic lens cover, and a focus ring for easy operation, even with gloves.
The HIKMICRO STELLAR SX60L 3.0 combines advanced technology with classic style, offering a reliable and powerful tool for serious hunters who demand top-tier performance and innovative precision.
Specifications
Image Sensor |
VOx Uncooled Focal Plane Arrays |
Max. Resolution |
1280×1024 |
Frame Rate |
25Hz |
Pixel Interval |
12 μm |
Response Waveband |
8 μm to 14 μm |
NETD |
Less than 18 mK (@25°C),F#=1.0 |
Lens (Focal Length) |
60mm, F1.0 |
Focus Mode |
Focus Ring |
Detection Range |
3100m |
Min. Focusing Distance |
6m |
Magnification |
2.5×-28.5× Support 1× step value of continuous zooming |
Field of View(H × V), Degrees / m @100m |
14.6°×11.7°/25.6m×20.5m |
Display |
2560x2560, 1.03 inch OLED |
FFC (Flat Field Correction) Mode |
Auto, Manual, External Correction |
Palettes |
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
Exit Pupil |
6mm |
Eye Relief |
45mm |
Diopter (Range) |
-4D to 4D |
Brightness Adjustment |
Yes |
Tone Adjustment |
Cold, Warm |
Contrast Adjustment |
Yes |
HSIS (HIKMICRO Shutterless Image System) |
No |
Zoom Pro |
No |
Image Pro 3.0 |
Yes |
Record Video |
On-board Video Recording |
Audio Recording |
Yes |
Capture Snapshot |
Yes |
Recoil-activation Recording |
Yes |
Storage |
Built-in EMMC (64 GB) |
PIP |
Yes |
Hotspot |
Yes |
Hot Track |
Yes |
Distance Measurement |
Yes |
Zeroing Profiles |
5 |
Freeze Zeroing |
Yes |
Max. Recoil |
1000g/0.4ms |
Standby Mode |
Yes |
Ballistic Calculation |
Yes |
Local Album |
Yes |
Battery Type |
Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) |
Battery Operating Time |
9 hours continuous running (@25°C, LRF on) |
Type-C Power Supply |
5 V DC/2 A, USB Type-C interface, Supports QC3.0 * Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery. |
Mounting |
Standard 30mm |
Dimension |
452.6mm x 94.3mm x78.9mm |
Weight |
1000g without external battery |
Working Temperature |
-30 °C to 55 °C (-22 °F to 131°F) |
Protection Level |
IP67 |
Center Height |
41mm |
LRF Module in Lens |
Yes |
Wavelength |
905 nm |
Safety Class for Laser |
Class 1 |
Max. Measuring Range |
1000 m |
Measurement Accuracy |
±1 m |
Min. Measuring Range |
10 m |
