The HELIX GEN 2 continues the legacy of the original HELIX line of riflescopes, with industry-leading reliability and performance taken to the next level through new features and further design improvements.
The important things come first: Reliable tracking, intelligent reticles, innovative features, and a user-friendly turret system. The turret system is tool-free and now features 8 MRAD or 20 MOA per revolution. The zero-stop mechanism ensures you never lose track of where you are, and the Second Focal Plane reticle provides a crisp, uncluttered image at all magnifications. Optically, the familiar 4x erector system is complemented by a new design allowing for a larger field of view and a more forgiving eye-box. Stringent quality control checks are in place to ensure repeatable performance under harsh conditions, and if something goes wrong, Element Optics’ Platinum Lifetime Warranty has you covered!
FEATURES
- ZERO STOP
- STRONG AND RUGGED DESIGN
- ADJUSTABLE DIOPTER

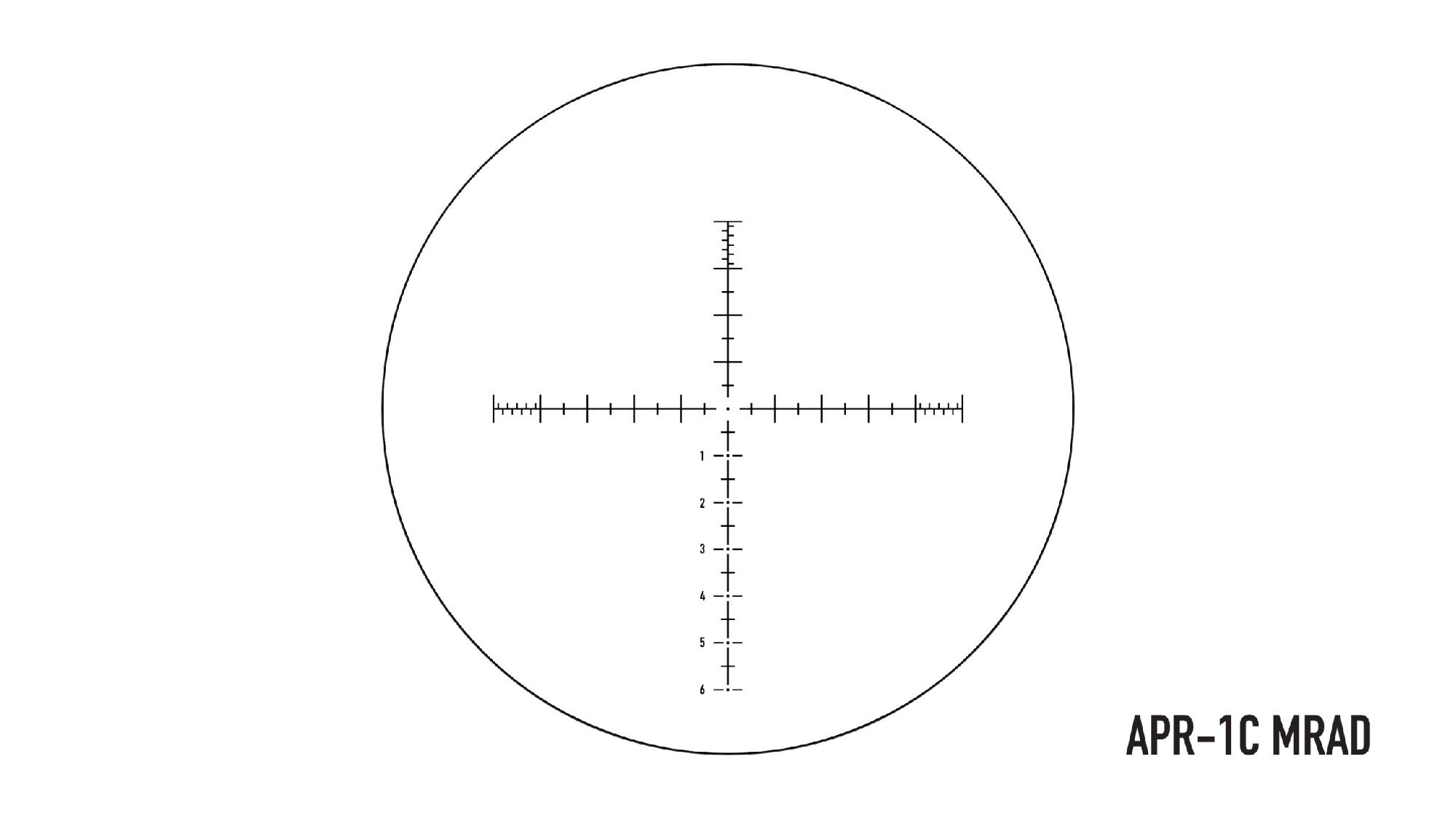

- SECOND FOCAL PLANE
- WEATHER RESISTANT
- SIDE PARALLAX
- 3OMM BODY TUBE
- ADVANCED FULLY MULTI-COATED LENSES
SPECS |
|
|
MAGNIFICATION RANGE |
6-24x |
|
TUBE DIAMETER |
30mm |
|
OBJECTIVE LENS DIA. |
50mm |
|
EXIT PUPIL |
8.3-2.1mm |
|
EYE RELIEF |
3.7-4” (94-102mm) |
|
FIELD OF VIEW |
20.1-5.1 ft @ 100yds |
|
|
(6.7-1.7 m @ 100m) |
|
CLICK VALVE |
1/4 MOA |
1/10 MRAD |
|
(20 MOA/rev) |
(8 MRAD/rev) |
ELEVATION ADJ. RANGE |
65 MOA |
18.9 MRAD |
WINDAGE ADJUSTMENT RANGE |
40 MOA |
11.6 MRAD |
MINIMUM PARALLLAX |
10 YDS |
10 M |
LENGTH |
14.0 Inches |
356 mm |
WEIGHT |
29.2 oz |
830g |
